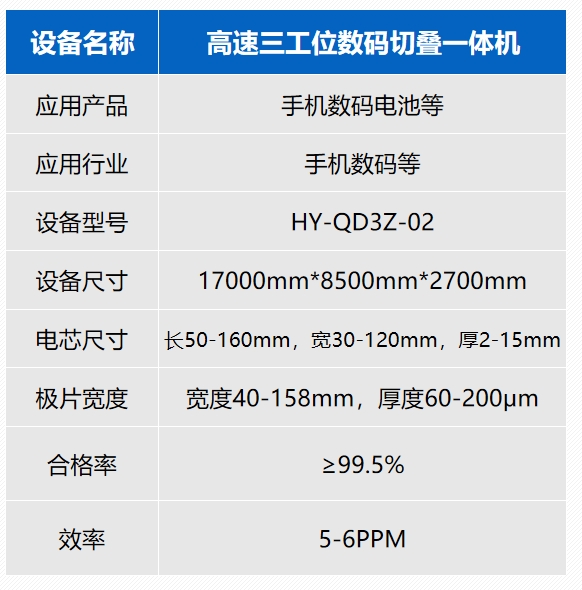

产品优势：
1、拥有隔膜张力控制及纠偏算法多项技术。 2、极片放卷采用整体纠偏，取消过程纠偏。
3、在线实时检测叠片OH，并闭环检测的OH值，提升电芯OH CPK。
4、效率和成本优势。同一套单面模具模切出上、下单面。
5、设备具有25FFU高效过滤器和除尘系统，设备自清洁程度高。
6、整机布局叠台多工位，维护便捷、各叠台可相互独立运行。
1. The tin balls are melted by laser, and the melted tin balls are sprayed onto the welding parts
to achieve precise welding, thereby ensuring the reliable electrical continuity and welding
strength of the components;
2. Non-contact welding, no flux welding, no cleaning;
2. Non-contact welding, no flux welding, no cleaning;
1. Flux-free soldering, no cleaning, cost saving;
2. Solder ball soldering, stable tin
amount of solder joints, good appearance consistency, improve soldering quality;
3. Realize
precise soldering of tiny soldering positions, solving the problem of manual inability to solder
;
4. High welding speed, increase productivity and save labor costs;
The product is suitable for BGA, VCM, CCM, HDD
 |
 |
 |
 |
 |
 |
| Basic Parameters | Dimensions (mm) | 1310(L)*1150(W)*1800(H) mm |
| Equipment weight | 1600kg | |
| Operating voltage | 220VAC, 50/60Hz | |
| Normal power | 16KW | |
| Working air pressure | 0.4~0.6 Mpa | |
| Working nitrogen pressure | 0.2~0.4 Mpa | |
| Function Parameter | Applicable solder ball diameter specification (um) | 70-1000 |
| Welding speed (ball/sec) | 4~8 | |
| Applicable welding spacing | 0.1mm minimum | |
| Mean time between failures (MTBF) | 4H | |
| Equipment one-time optimization rate | ≥99.5% | |
| Repeatability | ≤0.003mm | |
| Welding accuracy | ±0.01mm | |
| Environmental Parameters | Noise | <70dB |
| Temperature | 10~40℃ | |
| Humidity | 40~70% |
